Needle Flame Tester

Brief Introduction

Needle Flame Tester is a simulation experiment project using non-flame ignition source in accordance to standard requirements of IEC60695 -11-5,GB/T5169.5-2008,GB4706.1-2005 ,etc.

Needle Flame Tester uses Needle-shaped burner in required size (Φ0.9mm ) ;transport butane gas into it ,ignite the specimen at a regular time and angle of 45° ,to check whether the specimen ignite ,lasting ignition time and combustion length to test the ignition fatalness of devices inside because of flammule caused by breakdown.

Needle Flame Tester is suitable for research,production and quality testing department of electrical devices and component parts like lighting equipment,low voltage apparatus,household appliance,machine tool electric appliance,motor-driven machine,electric tool,electronic instrument,electrical connectors and accessories;also suitable for insulating material,engineering plastic and other solid combustible material industry.

Characteristics:

With predetermined size (Φ 0.9 mm) needle burner, in 45°angle burning product,measure the fire risk by product light-off or hold burning time.

Technical parameters:

3

.Test procedure

Installation

* This tester should be placed on a level table

* Table size no less than 1400W * 900D * (600-800)H mm

* Distance to the wall: > 200mm

* Exhaust pipe: diameter of 100mm

* The test room should be independent room equipped with exhaust system and firefighting device

* Please prepare gas (butane or purity >95% propane) and gas regulator

1.1) installs exhaust pipe, tighten the fitting

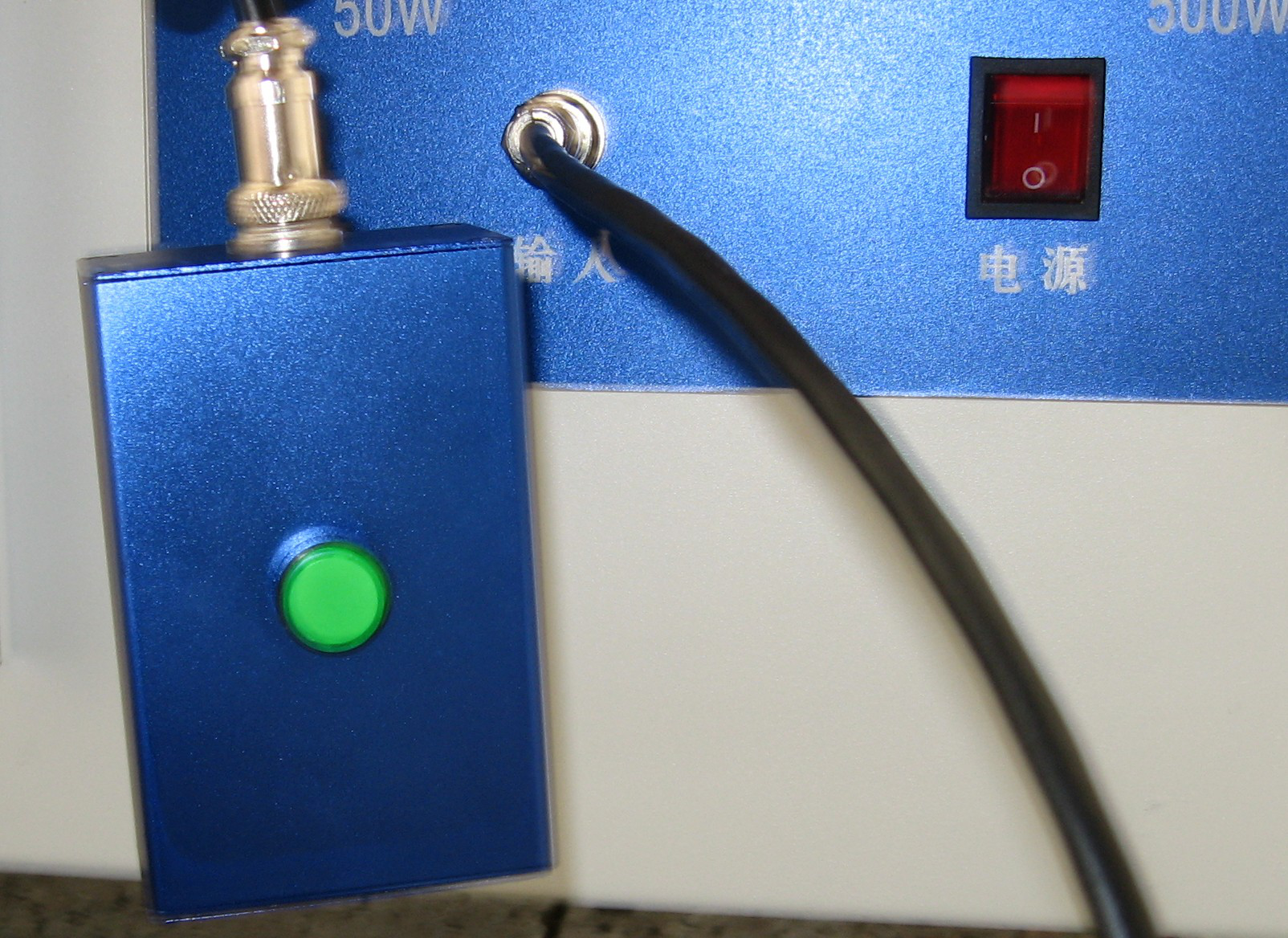

1.2) connect wire control box as below

1.2) connect wire control box as below

1.3) connect gas

Attention

• This equipment should be placed on level ground or table, in an environment of temperature 25±10℃, humidity 50±30%RH.
• Keep this equipment away from heat or corrosion source.
• Please keep this tester at least 200mm away from wall, for heat dissipation.
• Please check and calibrate this equipment once a year. Ensure the performance and precision.
• Its not allowed to stabbed or scrap touch screen with a sharp object.
