    E40 Lamp cap gauge | E40-7006-27-7 | E40-7006-28D-1 | E40-7006-52-1 | E40-7006-53-1

    Ask Lasest Price
    Brand Name : Kingpo
    Model Number : 7006-27-7
    Certification : iso9001
    Price : To be quoted
    Payment Terms : T/T
    Supply Ability : 1000 pcs per month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

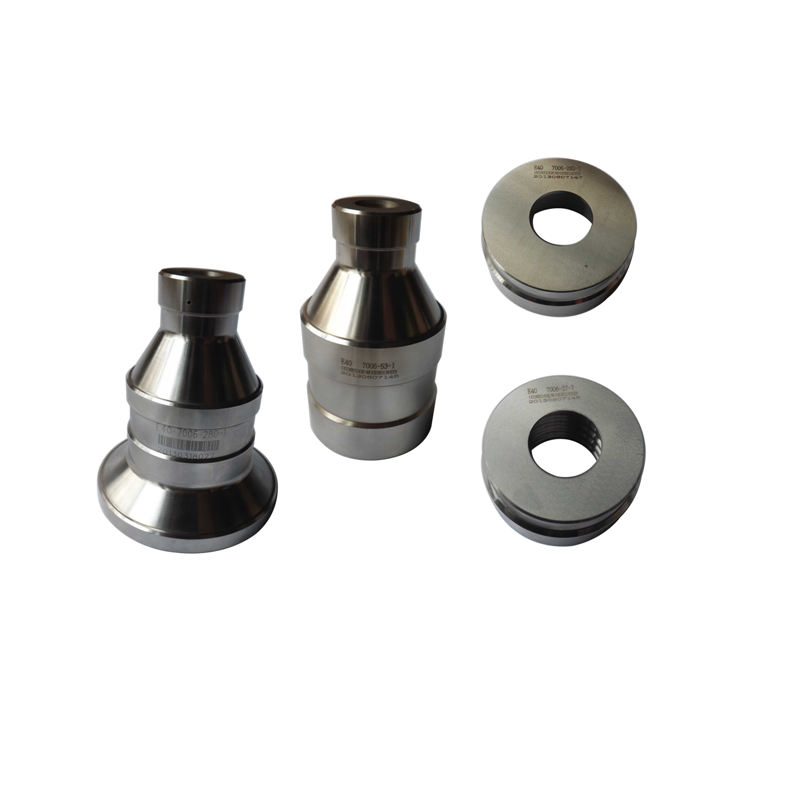

    E40 Lamp cap gauge | E40-7006-27-7 | E40-7006-28D-1 | E40-7006-52-1 | E40-7006-53-1


    E40 Lamp cap gauge | E40-7006-27-7 | E40-7006-28D-1 | E40-7006-52-1 | E40-7006-53-1


    IEC60061-3 E40 Lamp gauges
    ModelGaugeDescription
    7006-27-7

    Go gauge for caps on finished

    lamps E40

    Purpose:

    to check the maximum dimensions of the screw thread and

    dimension T1 minimum of E40 caps on finished lamps.

    Testing: when the cap on a finished lamp has been screwed

    into the gauge as far as it will go, the centre contact shall be

    co-planar with, or project beyond, surface X.

    7006-28D-1

    Not go gauge for caps on finished

    lamps E40

    Purpose:

    to check the minimum outside(major) diameter of the

    screw thread, dimension d, of E40 caps on finished lamps.

    Testing: when the gauge is placed over the thread of the

    cap on a finished lamp, held cap uppermost, the centre

    contact shal not project beyond surface X.
    Only the weight of the gauge itself shall be used in the test.

    7006-53-1

    Gauge for finished lamps fitted with

    E40 caps for testing protection against

    accidental contact E40

    Purpose:

    to check protection against accidental contact.
    Testing: the shape of the lamp with regard to protection

    against accidental contact is assumed to be correct if the

    test sample being pushed as far as possible into the gauge,

    plane W does not protrude beyond plane V.

    7006-52-1

    Gauge for finished lamps fitted with

    E40 caps for testing contact making

    Purpose:

    to check lamp dimensions for contact making in

    I.E.C. holders.

    Testing: the shape of lamp with regard to the fit in the

    lampholder is assumed to be correct, if the lamp can be

    pushed into the gauge till plane W reaches plane V or

    projects beyond it.
