    IEC60884 Figure 10 ,Gauge for checking non-accessibility of live parts, through shutters


    1N gauge / IEC60884 Figure 10 - Gauge for checking non-accessibility of live parts, through shutters,and of live parts of socket-outlets with increased protection


    Description:
    Gauge for checking non-accessibility of live parts, through shutters, and of live parts of
    socket-outlets with increased protection.
    After 20N gauge test, this gauge then applied with a force of 1N and in three directions, for
    approximately 5s in each of the three directions, with independent movements, withdrawing the
    gauge after each movement.


    Specifications:
    Item 1N gauge
    Refer standard IEC 60884 Figure 10
    Diameter 1mm
    Length 80mm
    Handle Diameter 30mm, length 60mm
    Guard Diameter 50mm, thickness 5mm
    Pull force 1N (achieve by a push pull meter)

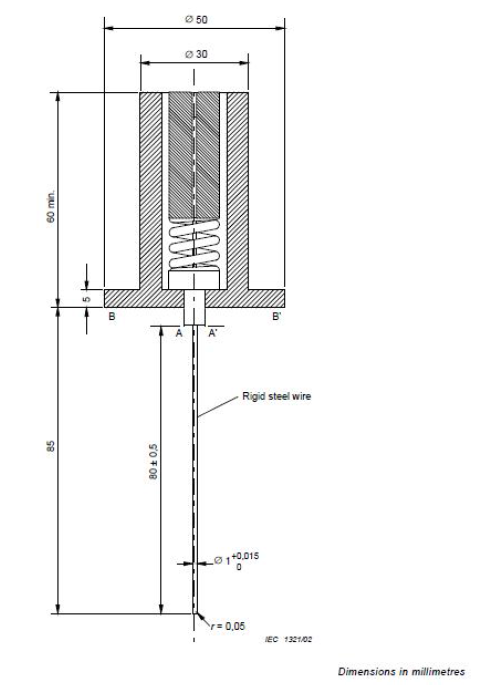

    Drawing: refer to IEC60884 figure 9
