IEC60950 Abrasion Resistance Test For Checking Abrasion Strength Of Pcb Scratches

1.Application:

The device is used to check abrasion strength of printed circuit boards scratches are made across five pairs of conducting parts and the intervening separations at points where the separations will be subject to the maximum potential gradient during the tests.

The scratches are made by means of a hardened steel pin, the end of which has the form of a cone having a tip angle of 40°, its tip being rounded and polished, with a radius of 0.25 mm ± 0.02 mm.

Scratches are made by drawing the pin along the surface in a plane perpendicular to the conductor edges at a speed of 20 mm/s ± 5 mm/s. The pin is so loaded that the force exerted along its axis is 10 N ± 0.5 N. The scratches shall be at least 5 mm apart and at least 5 mm from the edge of the specimen.

Test procedure

1)Installation

* This tester should be placed on a level table

2)Operation

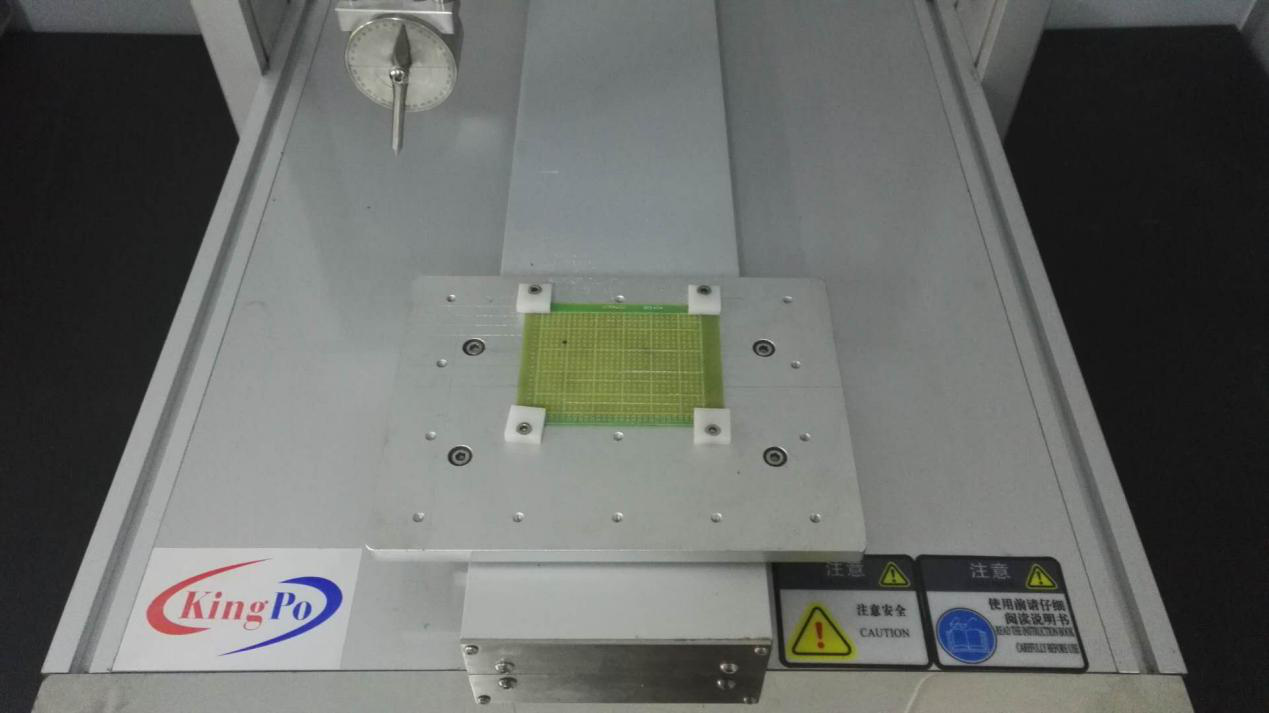

2.1 Install test sample

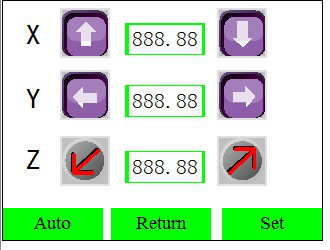

2.2Manually move the pin to test initial position.Write down the X and Y values on the screen

2.3.Click SET to set the X and Y axis speeds and enter the recorded X and Y values.

2.4.Click SET to set the length of scratch, separation distance, and number

2.4.Click "RUN" and the machine will work automatically.

2.5,The machine will stop automatically when it is finished.
