Aboud 3D Research and development

Whcmm 3d is committed to 3D digital manufactring, professional R & D white light , laser and optical

detection of the workpiece series of 3D scanning andmeasurement system. after years of unremitting

efforts to achieve a series of products anddiversification. Products include 3D optical scanners,

handheld 3D scanners, 3D optical detection system, 3D color scanner , laser body (form) scanners,

while providing user-oriented reverse engineering , rapid prototyping services, digital manufacturing

solutions.And according to customer demand for 3D design services and project implementation .

The basic principles of the 3D scanner

Using structured light technique, phase measurement techniques, computer vision technology

3Dnon -c ontact measurement techniques . Using this 3Dmeasurement technology to Photographic

measurements of objects was possible , the so-called photographic measurement, Is similar to the

camera to takepictures of the object field ofview , different Is the camera shot is two-dimensional

images of objects, and the development of the measuringinstrument 3D object is obtained digital

information . Withthe traditional 3D scanner The difference is that Chinese Long continuous

measurement of 3D scanner to a 3D surface, the measured When the amount of raster (spot)

several pieces ofequipment projected light specificcoding structure (Point) to the test object, into a

certainangle of two (or more) photo Mined as the first synchronization corresponding image , and

then phase and decoding of image Calculated , and the use of matching techniques , triangulation

principle, calculate the two solutions One (or more) industrial camera field of view of public

surface of the three pixels Dimensional coordinates..

Working Principle of 3D scanner

Product applications

Reverse engineering (RE) / Rapid Prototyping (RP) /CAD / CAM

· Scan-kind, the establishment of 3D object data; or scanning model , Build 3D surface of the part used to detect data

· Mold Design

· Using the true model created by the RP , establishand improve product

Design Test (CAT / CAE)

· production line quality control and detection of surface parts of the shape

· Finite Element Analysis

· Dynamic object trajectory measurement and motion capture

Research

· computer vision , robotics

· Computational Geometry

· Ergonomic

· Archaeological Research

Other applications

· 3D reconstruction of the scene

· artifacts, works of art entry, 3D display andproduct protection

· 3D animations

· Medical Plastic, etc.

Automotive, transportation

Recommended models: Nanke3d-AT Nanke3d-AZ

Direction of the work: for the body , hull design, train and interior design,

with Car design, motorcycle body design ,avariety of body sheet metal parts design, design of plastic parts (car seat , instrument panel, bumper).Can also berelated to mold or workpiece error detection and quality assessment

Applications: vehicle measurements , auto parts, railway engineering, Ship measurements.

Lights 3D drawing steering wheel, 3D drawing

Drawing from 3D scan data door Helmet scan data

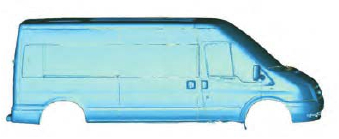

Auto scan site Auto scan data

Manufacturing (footwear industry , toy industry , carving industry , ceramic snitary ware, digital artifacts )Footwear industry

Recommended models: Nanke3d-AM

Direction of the work: for a variety of heel, shoe last ,shoe design (including the design of sports shoes, design shoes , design shoes , slippers design).

Original shoes Scan shoes

Toy Industry

Recommended models: Nanke3d-AM

Direction of the work: Can quickly come to shape theproduct characteristics, accuracy

0.02mm, but also on the mobile phone , keys and other precision parts for scanning .

Toy body Toy scan

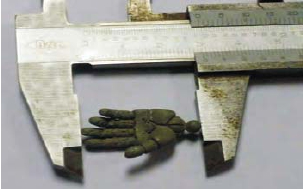

Small hand scan

Stone carving

Industrial Inspection

Recommended models: Nanke3d-AT Nanke3d-AZ

Direction of the work: Measured using 3D piece of 3D scanner data, with the Qualify,

Solidworks software and otherrelated test , measurement and analysis of 3D parts and

generate error reports , greatly improved work efficiency , improve product yield

Applications: product testing , measurementcom parison, assessment sampling

Nanke 3D measurement accuracy of better industrial measuring instrument , can fully meet the requirements of industrial inspection accuracy . For quality control and geometrical sizedetection , especially for the detection of complex surfaces .

Microwave antenna scanned the scene analysis of microwave antenna receiver

Measuring and contrast

Of the workpiece CAD design with 3D geometric shape than the right, quickly and easily form a large piece of product quality inspection ; the workpiece can be measured in different periods under the force of deformation.

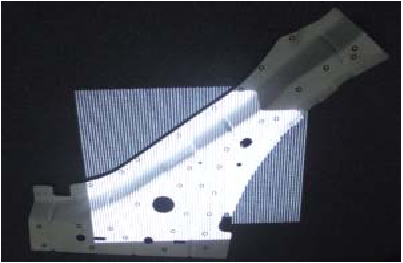

Automotive sheet metal scanning the scene

Application industry

Body and ship design , mold manufacturing , aerospace industry , industrial design

industry , medical and beauty industry , casting pieces scanning probe , wood /stone

carving industry , product testing and evaluation of the error , ceramic sanitary ware

industry , underwear mold making , toy industry appliances product modeling ,

conservation and data scanning , 3D body scan of the application (reverse

engineering) , footwear and so on.

Product Type

NANKE3DB

NANKE3DB-II

3D white light scanning products imported lenses , optical components and stability of the grating chip , with:

● Scan speed ≤ 5 seconds;

● high precision ≤ ± 0.015mm

● signs point automatic stitching; intelligent software to generate single point cloud data

● scanning range to scan an object the size of adjustment to meet the requirements of a variety of workpiece

● scan depth of field up to 0 ~ 500mm

● Measuring output data interface is widely

● measurement system with 3D photography , faster, more accurate
