UL498 Plug Socket Tester American Standard Plug And Socket Gauge

    Buy cheap UL498 Plug Socket Tester American Standard Plug And Socket Gauge from wholesalers

    Buy cheap UL498 Plug Socket Tester American Standard Plug And Socket Gauge from wholesalers
    • Buy cheap UL498 Plug Socket Tester American Standard Plug And Socket Gauge from wholesalers
    • Buy cheap UL498 Plug Socket Tester American Standard Plug And Socket Gauge from wholesalers
    • Buy cheap UL498 Plug Socket Tester American Standard Plug And Socket Gauge from wholesalers
    • Buy cheap UL498 Plug Socket Tester American Standard Plug And Socket Gauge from wholesalers

    UL498 Plug Socket Tester American Standard Plug And Socket Gauge

    Ask Lasest Price
    Brand Name : Kingpo
    Model Number : UL498
    Certification : Calibration Certificate(ISO17025)
    Price : To be quoted
    Payment Terms : T/T
    Supply Ability : 1000 Pieces/month
    Delivery Time : goods in stock
    • Product Details
    • Company Profile

    UL498 Plug Socket Tester American Standard Plug And Socket Gauge


    Steel UL498 Plug Socket Tester American Standard Plug And Socket Gauge


    UL 498 American Standard Plug Socket Tester ,UL498 Plug Socket Gauges



    American Standard UL498 plug and socket gauge
    No.Itemsdrawing numberstandard numberQty
    1Articulate probe with web stopFigure 9.1UL 4981
    2Probefigure 10.1UL 4981
    3Flat probefigure 31.1UL 4981

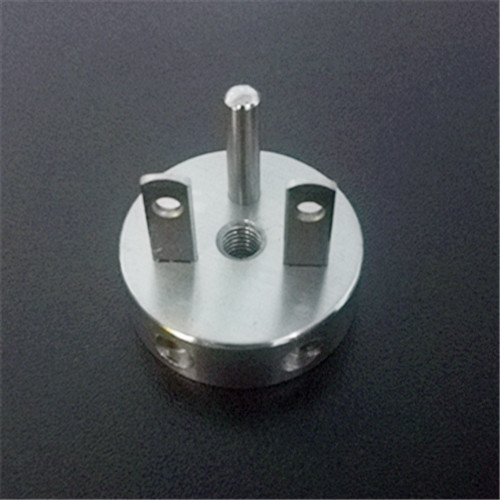

    4Reference plugfigure 73.1UL 4981
    5the simulation of plug tension device should a figurefigure 69.1UL 4981
    6Improper insertion test bladesfigure 98.1UL 4982
    7Test gaugefigure 109.1UL 4982
    8Test bladefigure 109.2UL 4981
    9Receptacle test fixturefigure 122.1UL 4981
    10Push out toolfigure 122.3UL 4981
    11Bridgefigure 122.5UL 4981
    12Test pin Afigure 123.1UL 4981
    13Test pin Bfigure 123.2UL 4981
    1457g ground pinfigure 123.3UL 4981
    15113g ground pinfigure 124.4UL 4981
    16No.14AWG test pinfigure 133.2UL 4981
    17Small test probefigure 136.1UL 4981
    18Large test probefigure 136.2UL 4981
    19Fixture for assembly security testfigure 165.2UL 4981
    20Over size ground pinfigure SD 13.2UL 4981

    Quality UL498 Plug Socket Tester American Standard Plug And Socket Gauge for sale
