    USB Bluetooth Testing Instrument Perfect Benchmarking Anritsu MT8852B


    Highly Cost-Effective Bluetooth Testing Instrument

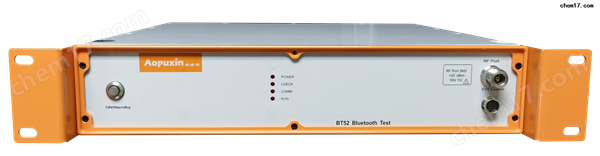

    Bluetooth Test Set BT52

    Supporting Basic Rate, Enhanced Data Rate, and Bluetooth Low Energy, test your devices in less than 10 seconds with one-button test to fully characterize your implementation
    Perfect benchmarking Anritsu MT8852B
    By eliminating wires and simplifying connections between everyday appliances,Bluetooth® wireless technology has become the dominant standard for short-range wireless connectivity.
    The Bluetooth Test Set BT52 is the market leading RF measuring instrument for design, providing production test for a wide range of products that integrate Bluetooth® technology. It supports Basic Rate (BR), Enhanced Data Rate (EDR) and Bluetooth low energy (BLE) measurements of transmit power, frequency, modulation, and receiver sensitivity required by Bluetooth RF test specifications.
    The BT52 Bluetooth Test Set gives you a one-button test to fully characterize your Bluetooth implementation and ensure that quality is maintained. Initiating a script that tests a device in less than 10 seconds.
    Measurements performed as defined in the Bluetooth RF Test Specification
    Measurements performed in Bluetooth test mode - Loopback or Tx mode supported
    Initialization and control of test devices through UART, USB or USB-Adaptor HCI control interface
    Built-in support for Bluetooth low energy 2-Wire control interface
    BR/EDR/Bluetooth low energy dirty transmitter for receiver sensitivity test cases
    2 Mbps Low Energy PHY (2LE) and Bluetooth Long Range (BLR) tests
    Adding this option supports the 2 Mbps Low Energy PHY (2LE) tests expected to improve dramatically improve battery life and Bluetooth Long Range (BLR) tests supporting communications beyond a range of 500 m that are both included in Bluetooth Core v5 specifications or later.
    Adaptive Frequency Hopping inspection function
    The Adaptive Frequency Hopping (AFH) option facilitates analysis of interference from, and co-existence with, interfering signals such as WLAN. This option provides graphical displays of FER and masked channels when interfering signals are introduced, allowing optimization of hardware designs.
    Angle of Arrival/Angle of Departure tests
    Adding this option supports Angle of Arrival / Angle of Departure that is included in the new Bluetooth Core v5.2 specification.
    instrument parameters
    Number of channels1CH
    InterfaceGPIB/ USB
    Test modeStand,Null Packet,Single payload
    Transmitter testing projectOutput power, power control, modulation characteristics, initial frequency offset frequency
    Receiver testing projectDrift single time slot sensitivity, multi time slot sensitivity, maximum output level
    Maximum output power0 dBm
    Bluetooth Core Specification1.2,2.0,2.1,3.0+HS,4.0,4.1,4.2,5.0,5.1,5.2
    TAG:Bluetooth testing instrument, bluetooth test equipment,Bluetooth Test Set
