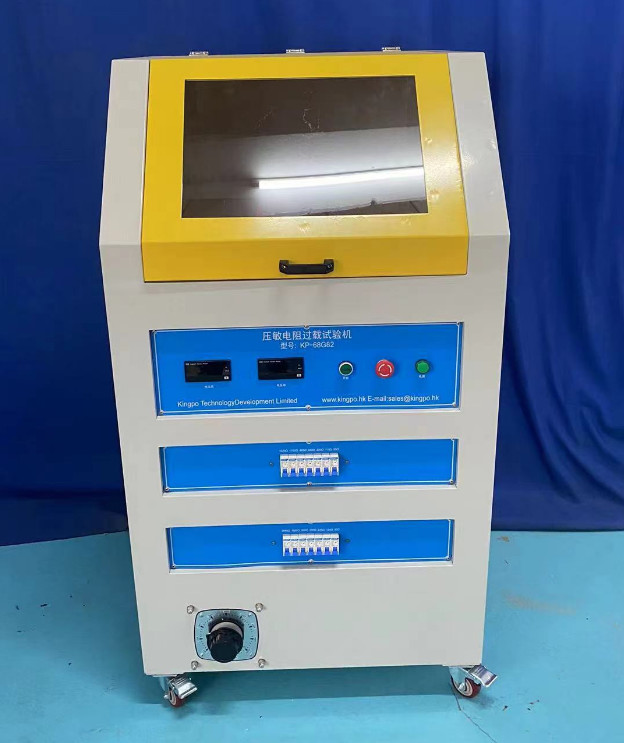

    IEC 62368-1 Annex G.8.2.2 Standard Varistor Overload Tester with 900*800*1550mm Size

    Ask Lasest Price
    Brand Name : KingPo
    Model Number : KP-68G82
    Certification : Calibration Certificate
    Price : To be quoted
    Payment Terms : T/T
    Supply Ability : 3 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    IEC 62368-1 Annex G.8.2.2 Standard Varistor Overload Tester with 900*800*1550mm Size

    IEC 62368-1 Annex G.8.2.2 Varistor Overload Tester
    1. IEC 62368-1, Annex G.8.2.2
    2.Voltage Vr: 240V, 2Vr:480V, resistance accuracy ±3%

    R1 (16*Vr) : 16*240=3840Ω, current: 2Vr/R1=0.125A;
    8x resistance R2 (8*Vr) : 8*240=1920Ω, current: 2Vr/R2=0.25A;
    4x resistance R3 (4*Vr) : 4*240=960Ω, current: 2Vr/R3=0.5A;
    2x resistance R4 (2*Vr) : 2*240=480Ω, current: 2Vr/R4=1A;
    1x resistance R5 (1*Vr) : 1*240= 240ω, current: 2Vr/R5=2A;
    0.5 x resistance R6 (0.5*Vr) : 0.5*240=120Ω, current: 2Vr/R6=4A;
    0.25 x resistance R7 (0.25*Vr) : 0.25*240=60Ω, current: 2Vr/R7=8A;

    Voltage Vr: 220V, 2Vr:440V
    Resistance R1 (16*Vr) : 16*220=3520Ω, current: 2Vr/R1=0.125A;
    8x resistance R2 (8*Vr) : 8*220=1760Ω, current: 2Vr/R2=0.25A;
    4x resistance R3 (4*Vr) : 4*220=880Ω, current: 2Vr/R3=0.5A;
    2x resistance R4 (2*Vr) : 2*220=440Ω, current: 2Vr/R4=1A;
    1x resistance R5 (1*Vr) : 1*220= 220ω, current: 2Vr/R5=2A;
    0.5x resistance R6 (0.5*Vr) : 0.5*220=110Ω, current: 2Vr/R6=4A;
    0.25x resistance R7 (0.25*Vr) : 0.25*220=55Ω, current: 2Vr/R7=8A;


    3 Voltage regulator
    Voltage: 0-600V adjustable, voltage accuracy ±1.5%
