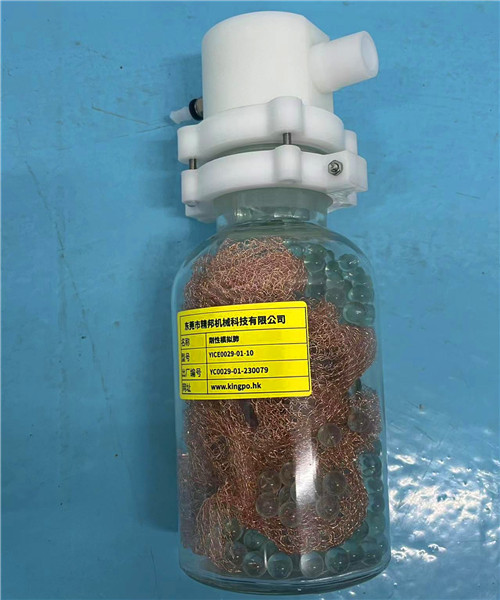

    Iso 80601-2-12 Test Conditions For Acoustic Tests Test Lung

    Ask Lasest Price
    Brand Name : KingPo
    Model Number : ISO 80601-2-12-Table 201.102
    Certification : Calibration Certificate
    Price : To be quoted
    Payment Terms : T/T
    Supply Ability : 50 units per month
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    Iso 80601-2-12 Test Conditions For Acoustic Tests Test Lung

    ISO 80601-2-12 Test conditions for acoustic tests -test lung


    Adjustable parameterTest condition
    For a ventilator intended to provide tidal volume
    VT ≥ 300 ml300 ml ≥ VT ≥ 50 mlVT ≤ 50 ml
    Tidal volume, VTa500 ml150 ml30 ml
    Set rate10 breaths/min20 breaths/min30 breaths/min
    I:E ratio1:21:21:2
    BAP10 hPa (10cmH2O)10 hPa (10cmH2O)10 hPa (10cmH2O)
    Linear resistance,Rb5 hPa·(l/s) −1 ±10%20hPa·(l/s)−1 ±10%50hPa·(l/s)−1 ±10%
    Isothermal Compliance, Cb50 ml·hPa −1 ±10 %20 ml·hPa −1 ±10 %1 ml·hPa −1 ±10 %
    ModelKP-601250KP-601220KP-601201

    a VT is measured by means of a pressure sensor at the test lung, where V T = C x (P max ), and VT is the volume delivered to the test lung

    C is the isothermal compliance of the test lung

    Pmax is the maximum pressure measured in the test lung

    b The accuracy for C and R applies over the ranges of the measured parameters.
