    Charge Gun EV Plug And Connector Breaking Capacity Tester IEC 62196-1

    IEC 62196-1 Charge gun / Electric Vehicle Plug And Connector Breaking Capacity Tester

    Product information:

    The test equipment is used to verify whether electrical accessories such as electric vehicle charging interfaces, industrial plugs, socket-outlets and couplers can withstand the mechanical, electrical and thermal stresses that occurred during normal operation without excessive wear or other harmful effects.

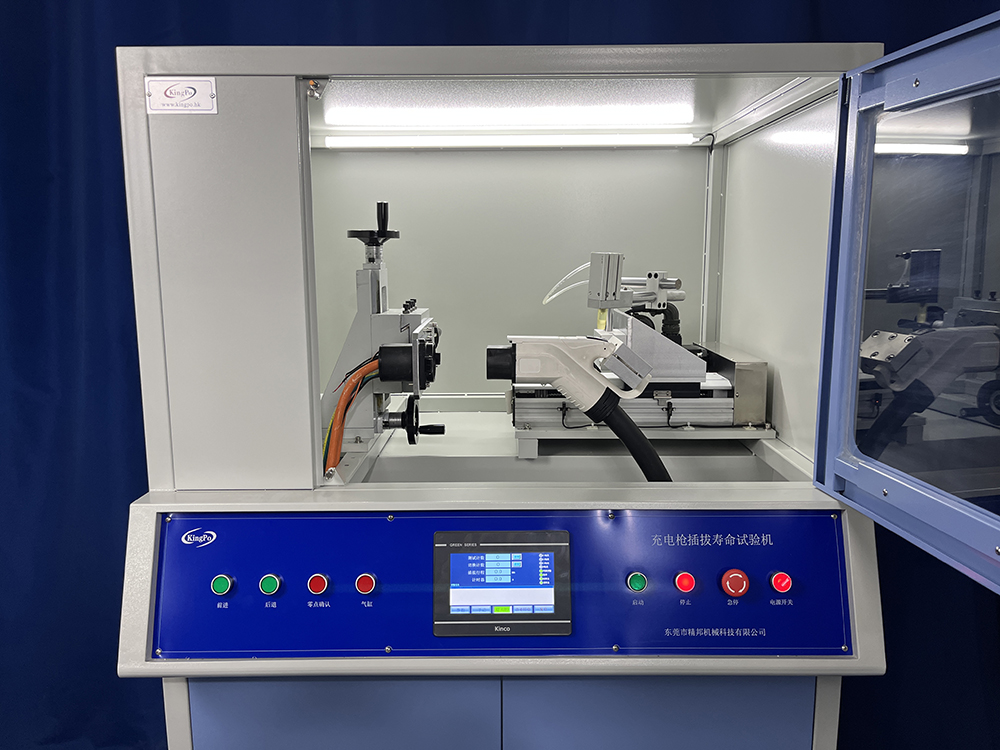

    The servo motor drives the mechanism to make the test samples repeat insertion and withdrawal actions. An external load can be used for the breaking capacity test. The power on / off time, test speed, stroke, and angle can all be preset on the touch screen.


    Applied standard & clauses:

    IEC62196-1: 2014 “Plug, socket-outlets, vehicle connectors and vehicle inlets–Conductive charging of electric vehicle-Part1: General requirements” clause 22 and clause 23

    IEC60309-1: 2012 “Plug, socket-outlets and couplers for industrial purposes–Part1: General requirements” clause 20 and clause 21

    22.2 The test position shall be horizontal or, if not possible, as in normal use.

    The plug or vehicle connector is inserted into and withdrawn from the socket-outlet or vehicle

    inlet at a rate of 7.5 strokes per minute, or at the rate recommended by the manufacturer,

    whichever is less. The speed of insertion and separation of the plug or vehicle connector shall

    be (0,8 ± 0,1) m/s.


    The speed of insertion may differ according to manufacturer’s recommendation.

    The measurement of speed is made by recording the interval of time between insertion or

    separation of the main contacts and the insertion or separation of the protective earthing

    contact, relative to the distance.


    Electrical contacts shall be maintained for no more than 4 s and no less than 2 s.

    The movement(s) of a plug or vehicle connector during insertion into the mating accessory

    may be more complex than a single linear movement. At the manufacturer’s option, the test

    may be made with the insertion and withdrawal made manually or by machine. The movement

    may be limited to provide adequate separation of the mating contacts.


    Technical parameters:


    Test StationSingle, can be customized
    Electrical Control MethodPLC intelligent integrated control, with color humanized touch screen
    Drive ModeServo motor drive
    Sample Clamping MethodMechanical clamping, the position of clamping point can be adjustable along the 3-axis fixture
    Linear Stroke0-100mm, can be preset (the spacing between test plug and test socket≥ 50mm)
    Conduction Time0-99.9s, can be preset (electrical contact should be maintained no more than 4s, no less than 2s)
    Speed of Insertion and Separation0-0.85m/s can be preset,default(0.8±0.1)m/s
    Test Cycles0~999999 cycles, can be preset (A stroke is am insertion or a withdrawal of a plug or vehicle connector with its mating accessory. A cycle is composed of two strokes, one for insertion and one for withdrawal.)
    Test Frequency0-10 cycles/min,can be preset(3.75cycles/min=7.5 stoke/min)
    Load PowerExternal, providing standard required voltage, current and power factor, should be prepared by user
    Optional Load CabinetNote: only with AC load cabinet, 0-70A, voltage 0-300V
    Test Contents

    Appliance coupler/charging interface breaking capacity test

    Appliance coupler / charging interface normal operating life test

    Detection FunctionAn open circuit alarm can be realized during testing under load, and the cycles can be recorded real in time.
    Safety ProtectionGround protection, short circuit protection
    Equipment Dimensions & WeightW1000*D750*H1200mm, the whole machine is about 150Kg
    Power SupplySingle phase AC220V±10%, 50/60Hz, 10A
