    1000x1000x1000mm IPX9K Water Spray Test Chamber 100-150mm

    Ask Lasest Price
    Brand Name : KingPo
    Model Number : CR-1114
    Certification : Calibration Certificate
    Price : To be quoted
    Payment Terms : T/T
    Supply Ability : 3 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    1000x1000x1000mm IPX9K Water Spray Test Chamber 100-150mm

    IPX9K Water Spray Test Chamber


    1.This tester is for Waterproof Ingress protection grade testing.


    2. Technical Parameters

    ItemParameters
    Working Volume1000*1000*1000mm
    Test Water Temperature80±5 ℃
    Spray Pressure8Mpa~10Mpa (adjustable)
    Spray Flow14L/min~16L/min (change according to pressure)
    Nozzle Number4 (0°,30°,60°,90°)
    Nozzle SizeAccording to standard graphics, meet standards
    Spray Distance100~150mm (adjustable)
    Nozzle Spay Time0-99,9s(can be set)
    Spray SequenceAutomatically switch by sequence/Manual
    Turntableφ400mm
    Turntable speed5 r/min ± 1 r/min
    Turntable Lift300mm~400mm (Manually)
    Turntable loading(max)90kg
    Test WaterRecycling
    Flow MeterElectronic flowmeter (touch screen control)
    Power Supply For Test SampleProvide interface for test product,≤16A,(can customize)
    PowerAC380V 50Hz ,25kw
    Control ModePLC controller + touch screen control, inverter adjust water pressure

    3.Equipment photos

    12

    The nozzles

    13


    Set-up for measuring the impact force of the water jet for determining

    16

    The force sensor can be connected to a computer to display curves

    17

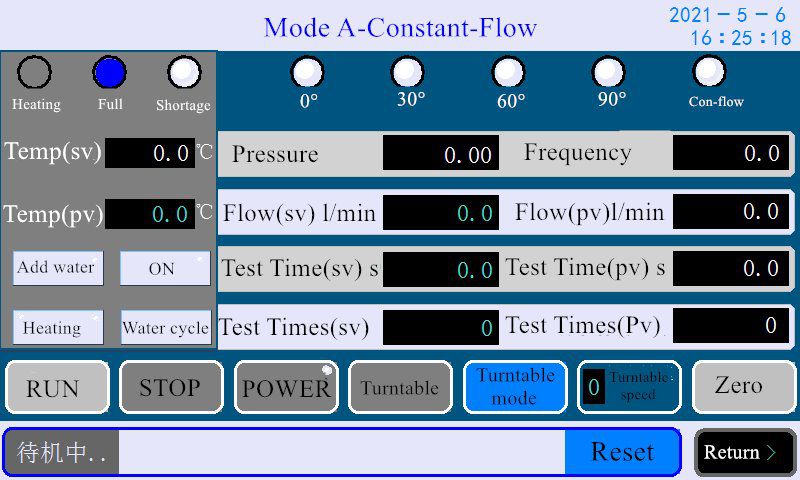

    Touch screen control page
