Harden Steel IEC60884 Figure18 And Figure19 Verification Of Maximum Withdrawal Force Test Apparatus

Application:

This device complies with the requirements of IEC60884 Figure 18/19, VDE0620, etc. It is suitable for checking the maximum force required to pull the plug out of the socket and the single pole pin pulled out from the socket assembly. Whether the minimum force required is within the range specified by the standard.

Parameter:

1. Standard one-pole 10A, three-pole 10A and 16A test standard plugs each, 10A 16A test standard plugs each, adjustable:

• 1) Round plug with 2-pole dual socket, the bolt diameter is 4.8
• 2) The round plug of the 2-pole dual-purpose socket, the bolt diameter is 4.0
• 3) Round plug (unipolar), the bolt diameter is 4.8
• 4) Round plug (unipolar), the bolt diameter is 4.0

2. Weights: 36N*1, 5.4N*1, 5N*2, 4N*1, 2.6N*1;

• 1) Standard test bolt: Each one for 1.5N and 2N
• 2)1 set of clamping device
• 3) 1 set of Weights tray
• 4) Lateral stress weights 5N*1
• 5) 1 set of lateral stress bar

Rated value	Number of poles	Pulling force(N)
		The maximum measure gauge of multipole plug pin	The minimum measure gauge of Single plug pin	The maximum measure gauge of single plug pin
≤10A	2	40	1.5	17
	3	50
＞10A～16A	2	50	2	18
	3	54
	More than 3	70
＞16A～32A	2	80	3	27
	3	80
	More than 3	100

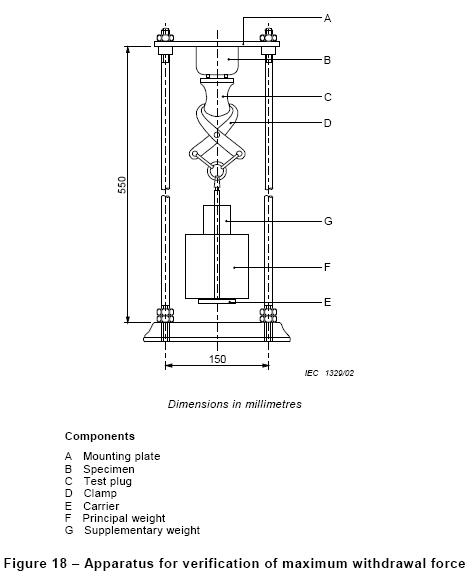

IEC60884-1 Figure18–Apparatus for verification of maximum withdrawal force
