Low Energy Vertical Pendulum Hammer 1000mm Impact Test Apparatus IEC0884-1 Fig 22-26

Product details:

The low energy vertical pendulum hammer impact tester is designed and manufactured according to IEC60068-2-75 IEC0884-1fig22-26. It is used for the mechanical strength test of household and similar use of plug socket, some electrical accessories like switch and shroud etc. The test apparatus consists basically of a pendulum rotating at its upper end in such a way as to be kept in a vertical plane. The axis of the pivot is at 1000㎜ above the measuring point. This device is for the energy impact test (the energy is ≤ 1J).

Technical parameters:

Pendulum

Mounting bracket:

weight: 10±1 kg; it is well-set and the Horizontal direction and the vertical direction can be adjusted.

The whole bracket can be rotated 90°through the rotation axis.

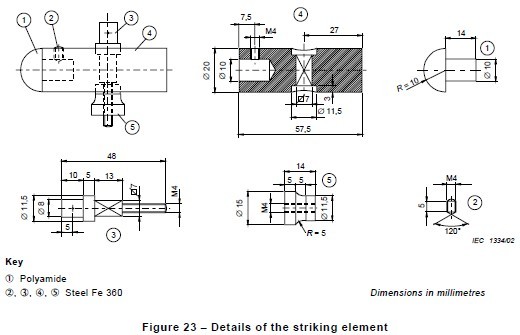

Striking element:

weight:150g and 200g.
