Overview of instruments:

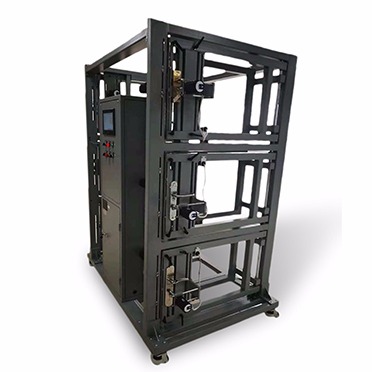

The door lock durability testing machine (US standard) is designed and manufactured strictly according to the latest standards of ANSI/BHMA A156.2,ANSI/BHMA A156.13,ANSI/BHMA A156.25 and ANSI/BHMA A156.39, which is suitable for certification organization laboratory, and can also be used for product design verification before factory production and sampling test of products in production. The equipment uses PLC control, touch screen set test program, rotary cylinder operation handle (grip), meet the standard ANSI/BHMA A156.2,ANSI. BHMA A156.13,ANSI/BHMA A156.25 and ANSI/BHMA A156.39 latest version test requirements.

Main technical parameters:

1. test bench frame: aluminum profile stand alone frame ,(stand-alone test machine);

2.6 stations (or 3 stations);

3. test bench space (overalldimension:1.5m (L) X1m (W) X2.0m (H));

4. Standard door size Test Door:36in wide (width);

5. Lock Block Specification :400 x130x40mm;

6. lock handle operating angle (handle operating angle):0~180 degrees adjustable;

7. handle torque (door handle operating torque:max.5Nm;)

8. closing force (closing force):22N &44N, optional;

9. life frequency :25~30 times per minute, adjustable speed;

10. Touch screen (HMI): Siemens, Set for cycle number and test speed life times set, power off hold count display;

11. Pneumatic components: SMC.
