    IEC 60968-Figure 3 Test Arrangement For Bending Moment Imparted By The Lamp At The Lampholder

    Ask Lasest Price
    Brand Name : kingpo
    Model Number : IEC 60968-figure 3
    Certification : iso9001 ce
    Price : To be quoted
    Supply Ability : 1000 pcs per month
    Delivery Time : 7 working days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    IEC 60968-Figure 3 Test Arrangement For Bending Moment Imparted By The Lamp At The Lampholder

    IEC 60968-figure 3 Test arrangement for bending moment imparted by the lamp at the lampholder

    Samples and Restrictions:


    Semi-luminaires intended for connection to Edison screw or bayonet lampholders


    Application:


    It is used to test the bending moment effect of the semi-luminaires on the lampholders, in order to prevent the damage of the lampholders from being damaged by excessive bending moment.


    Test Principle:


    Using a push-pull force gauge to connect with a semi-luminaire through a flexible cord, the force of the free bending of the luminaire is measured, and the actual bending moment value is calculated by multiplying the force arm, compared with the standard requirement.


    Technical Parameters:


    Digital display force gaugeDigital display, force range: 0-100N, resolution 0.1N
    Measurable length of semi-luminaires0-400mm

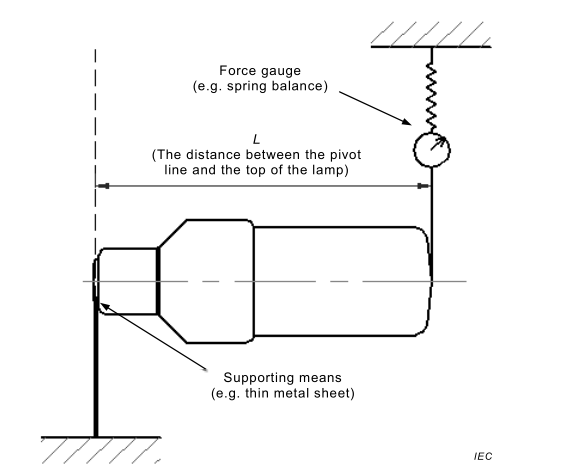

    Figure 3 – Sample test arrangement for bending moment imparted by the lamp at the lampholder


    The mass as given in Table 2 shall not be exceeded.


    Table 2 – Bending moments and masses




    TESTING AND MEASURING EQUIPMENT/ALLOWED SUBCONTRACTING

    IEC 62560 Edition 1 2011 – A1:2015


    Self-ballasted LED lamps for general lighting services by voltage > 50 V - Safety specifications


    ClauseMeasurement/testingTesting / measuring equipment / material neededPrice (RMB)Subcontracting
    5.3MarkingHexane,R
    water,
    piece of cloth
    6.1Cap interchangeability - Table 1Gauges according to IEC 60061-1 and IEC 60061-3R
    6.2Bending moment and mass imparted by the lamp at the lamp holderTest finger with indicating device and with force meter,R
    Weighting device
    7Protection against accidental contact with live partsStandard Test finger (IEC 60529) ,R
    IEC 60061-3, sheet 7006-51A for E27 caps
    IEC 60061-3, sheet 7006-55 for E14 caps
    Mega ohmmeter,
    High Voltage transformer
    8.2 - 8.3Insulation resistance and electric strength after humidity treatmentHumidity cabinet,R
    Mega ohmmeter,Use same as Clause 7
    High Voltage transformerUse same as Clause 7
    9.2.1Torsion resistance of unused lampsHolder for torque test Figure 3 and figure 4R
    9.4Axial strength of Edison CapsGauges according table 4,R
    dynamometer
    10Cap temperature riseTemperature test capR
    Temperature test draught-proof enclosure
    11Resistance to heatHeating cabinet,R
    Ball pressure test apparatus
    12Resistance to flame and ignitionNeedle flame test apparatus,R
    Glow-wire test apparatus
    14Creepage distances and clearancesDigital calliper (or equivalent)R
    15Abnormal operationCircuit shown in Figure 8 (for non-dimmable lamps on a dimmer or an electronic switch),R
    test finger
    17Photobiological safetyUV radiation test instruments / retinal blue light hazard test instruments (Equipment List of IEC/TR 62778:2012, Edition 1.0),S
    Goniophotometric measurement system
    18Ingress protectionIP X4 test equipmentR
