    IEC60601&IEC62368 Programmable Leakage Current Tester

    Ask Lasest Price
    Brand Name : Kingpo
    Model Number : CS9975-SIW
    Certification : Calibration Certificate
    Price : To be Quoted
    Payment Terms : T/T
    Supply Ability : 10 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    IEC60601&IEC62368 Programmable Leakage Current Tester

    Use 5.6 inch TFT (640*480) to display the setting parameters and test parameters, and the display content is eye-catching and rich;
     The tester can store the test results in the format of EXCEL table in U;
     Software can be upgraded through U disk;
     Compliance leakage current test Human body network: GB9706.1(IEC60601-1)/GB4793.1(IEC61010-1)/GB4706.1(IEC60335-1)/GB4943.1(IEC60950-1)/
    GB8898(IEC60065)/GB7000.1(IEC60598-1)/GB/T12113(IEC60990) standard;
    Leakage current provides four detection methods of AC, AC+DC, PEAK, DC;
    Provide auxiliary power supply required for medical equipment testing;
    Bilingual operation interface in Chinese and English to adapt to the needs of different users;
     Support keyboard lock operation to prevent irrelevant personnel from modifying test parameters;
    Support conversion between test files, explanation: when there are many test steps, you can distinguish by file name, which is convenient for parameter adjustment in the later period;
    Can be equipped with CS26045Y test box to realize multi-point scanning test;
    Support scan code gun function;
     Standard PLC interface, RS232 interface, optional LAN interface, RS485 interface, USB interface.
    ModelCS9975-SIW

    Leakage current


    voltage

    range30.0V~300.0V
    Precision±(2% reading +2V)
    Resolution0.1V
    Maximum external isolated power supply6000VA
    Current gear20uA, 200uA,2mA,20mA
    Detection methodAC,RMS,PEAK,DC
    Current upper limit setting00.1uA~20.00mA
    Current lower limit setting00.0uA ~Current upper limit

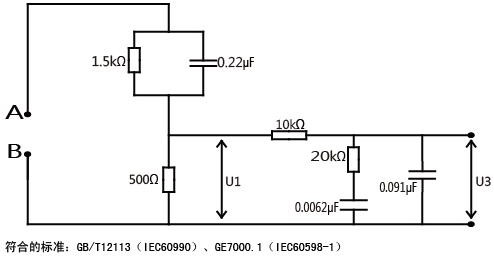

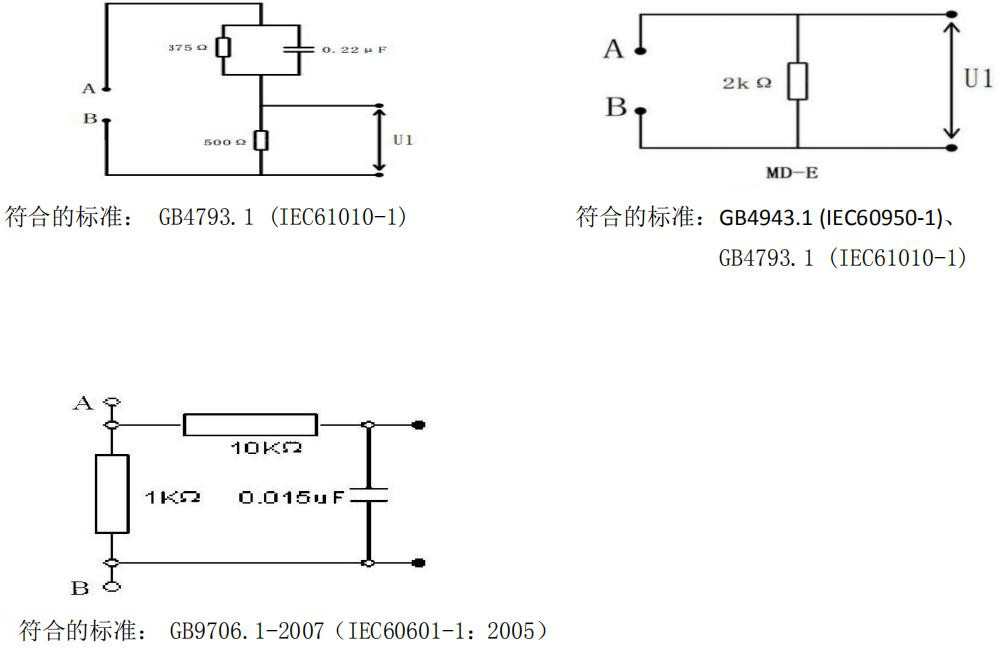

    MD Human Network

    GB9706.1(IEC60601-1)

    GB4793.1(IEC61010-1)/ GB4706.1(IEC60335-1)/ GB4943.1(IEC60950-1)/ GB8898(IEC60065)/ GB7000.1(IEC60598-1)/

    GB/T12113(IEC60990)

    Voltage rise timeCan not be set
    testing time(0.0, 0.3~999.9)s 0=continuous test
    Intervals(0.0~999.9)s 0=interval time off

    Leakage current meter

    Measuring range00.0uA ~ 20.00 mA
    Resolution20 uA 档:0.1uA,200 uA 档:0.1uA,2mA 档:1uA,20mA 档:10uA

    measurement accuracy

    ACI≥5 uA ±(2%rdg+0.5%fs)I≥50 uA ±(2%rdg+0.5%fs)
    DCI≥5 uA ±(2%rdg+0.5%fs)I≥50 uA ±(2%rdg+0.5%fs)
    AC+DCI≥5 uA ±(2%rdg+0.5%fs)I≥50 uA ±(2%rdg+0.5%fs)
    PEAKI≥50 uA ±(2%rdg+2%fs)

    Leakage voltage meter

    range30.0V~300.0V
    Precision±(2%+2V)
    Resolution0.1V
    Display valueRoot mean square

    Timing

    Device

    range0~999.9s
    Resolution0.1s
    Precision±(1%+50ms)
    Memory group30
    Test step99
    Input power supply voltage220V±10%,50Hz
    Import the memory file to the U disk, and export the U disk to the instrumentsupport
    Export storage results to U disksupport
    Standard interfaceRS232 interface, PLC interface
