    Cylindrical Borosilicate Glass Vessel 190mm Diameter, IEC 60335-2-25 Test Equipment

    Ask Lasest Price
    Brand Name : Kingpo
    Model Number : IEC60335-2-25 clause 3.1.9
    Certification : Calibration Certificate
    Price : To be quoted
    Payment Terms : T/T
    Supply Ability : 100 set/ month
    Delivery Time : goods in stock
    • Product Details
    • Company Profile

    Cylindrical Borosilicate Glass Vessel 190mm Diameter, IEC 60335-2-25 Test Equipment

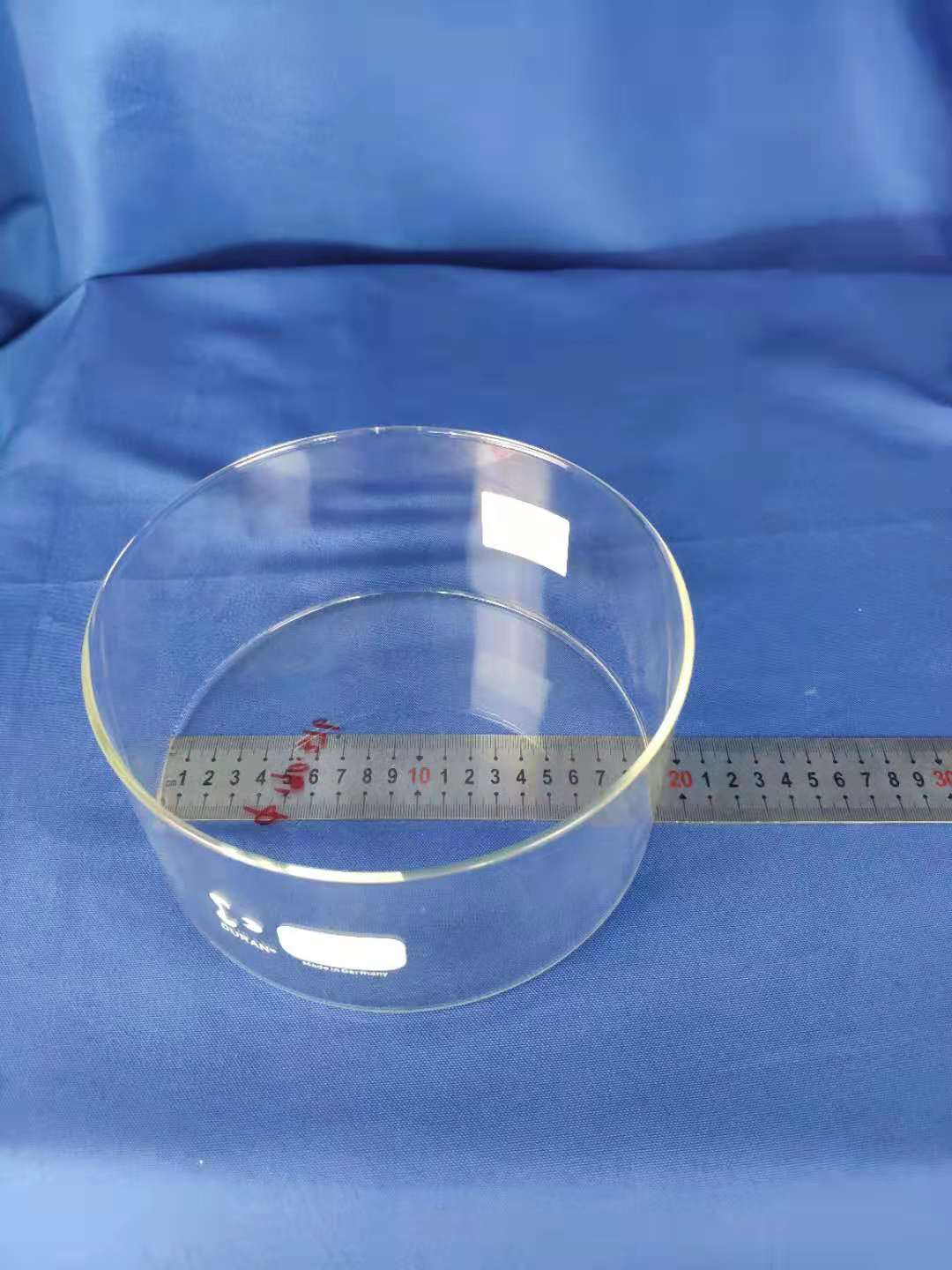

    Cylindrical borosilicate glass vessel 190mm diameter, IEC 60335-2-25 test equipment
    3.1.9 Replacement:
    normal operation
    operation of the appliance with 1 000 g ± 50 g of potable water at an initial temperature of 20 °C ± 2 °C in a cylindrical borosilicate glass vessel having a maximum thickness of 3 mm and an outside diameter of approximately 1 90 mm. The vessel is placed on the centre of the shelf

    TESTING AND MEASURING EQUIPMENT/ALLOWED SUBCONTRACTING

    IEC 60335-2-25, 6th Edition (2010) - A1/2014 - A2/2015

    Household and similar electrical appliances – Safety – Part 2-25: Particular requirements for microwave ovens, including combination microwave ovens


    ClauseMeasurement/testingTesting / measuring equipment / material neededSubcontracting
    3DefinitionsCylindrical borosilicate glass vessel (1L, 3mm thick, 190mm diameter)R
    8Protection against access to live partsTest probe 18 of IEC 61032R
    15Moisture resistanceFunnel with outlet diameter 8mmR
    16Leakage current and electric strength

    High frequency power supply

    High voltage probe

    R

    R

    18EnduranceDoor endurance testerR
    21Mechanical strengthSteel ball (50mm, 0.5kg)R
    22Construction

    1.0kA short circuit capacity (Rated V <150V and <20A)

    1.5kA short circuit capacity (Rated V >150V)

    Impedance (0.4 + j0.25)Ω

    Test rod for interlock concealment, 3mm diameter

    Steel armature (80mm x 50mm x 8mm)

    Steel rod, 1mm diameter

    Vibration test apparatus

    Test punch

    R

    R

    R

    R

    R

    R

    R

    S

    32Radiation toxicity and similar hazards

    Survey meter

    Borosilicate glass vessel 85mm in diameter

    R

    R

    Annex BBMicrowave ovens intended to ve used on boared ships

    Half-sine pulse testing machine(IEC 60068-2-27)
    Vibration test apparatus(IEC 60068-2-6)

    Salt mist test Kb apparatus(IEC 60068-2-52)

    S

    S

    S
