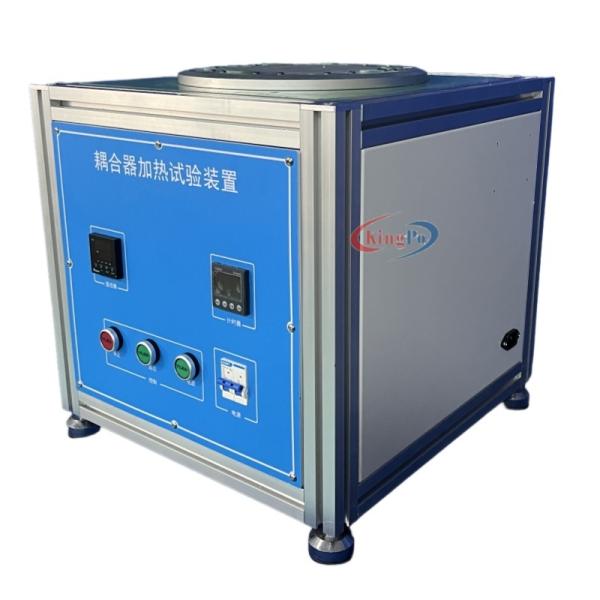

IEC 60320-1 Heating Test Apparatus for Connectors 220V

    Buy cheap IEC 60320-1 Heating Test Apparatus for Connectors 220V from wholesalers

    Buy cheap IEC 60320-1 Heating Test Apparatus for Connectors 220V from wholesalers
    • Buy cheap IEC 60320-1 Heating Test Apparatus for Connectors 220V from wholesalers
    • Buy cheap IEC 60320-1 Heating Test Apparatus for Connectors 220V from wholesalers
    • Buy cheap IEC 60320-1 Heating Test Apparatus for Connectors 220V from wholesalers
    • Buy cheap IEC 60320-1 Heating Test Apparatus for Connectors 220V from wholesalers

    IEC 60320-1 Heating Test Apparatus for Connectors 220V

    Ask Lasest Price
    Brand Name : kingpo
    Model Number : ORT-1
    Certification : ISO 17025
    Price : To be Quoted
    Payment Terms : T/T
    Supply Ability : 1000 sets per month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    IEC 60320-1 Heating Test Apparatus for Connectors 220V

    IEC 60320-1 Heating Test Apparatus for connectors / Plugs connectors

    Standards :


    IEC60320-1:2021 "Appliances couplers for household and similar general purposes- Part1:General requirements" clause 18.2 and figure 13.


    Technical Parameters :


    Test station9
    Control methodElectrical
    Heating methodElectrical heating, RT+10~160℃±2℃, can be preset
    Test contents10A heat-resistant appliance input socket: test 10A connector, test temperature 120°±2°
    10A severe heat-resistant appliance input socket: test 10A connector, test temperature 155°±2°
    16A severe heat-resistant appliance input socket: test 16A connector, test temperature 155°±2°
    Test duration0-99 hours and 59 minutes can be preset
    Center distance of couplerArranged uniformly in a circle of Φ230mm(It can test 9 samples simultaneously)
    Standard gaugeStandard 10A heat resistance, 10A server heat resistance and 16A server heat resistance are heating gauges
